| CK2007系列: | |
|
| Model No. CK2007 | High Tenacity Polyester PVC Laminated Fabrics | |
| General Applications: | Construction, Marine (Field) covers, Storage covers and many other applications | |
| Colors: | White, Green | |
| Available Grades: | Fire-Retardant, Ultra-Violet, Anti-Mildew, Anti-Cold | |
| Type of Products: | Roll Type, Ready Made Size Type | |
| Flammability Test Method: | BS5867-2:2008 - Flammability | |
Download Printable pdf version 下載列印版本資料

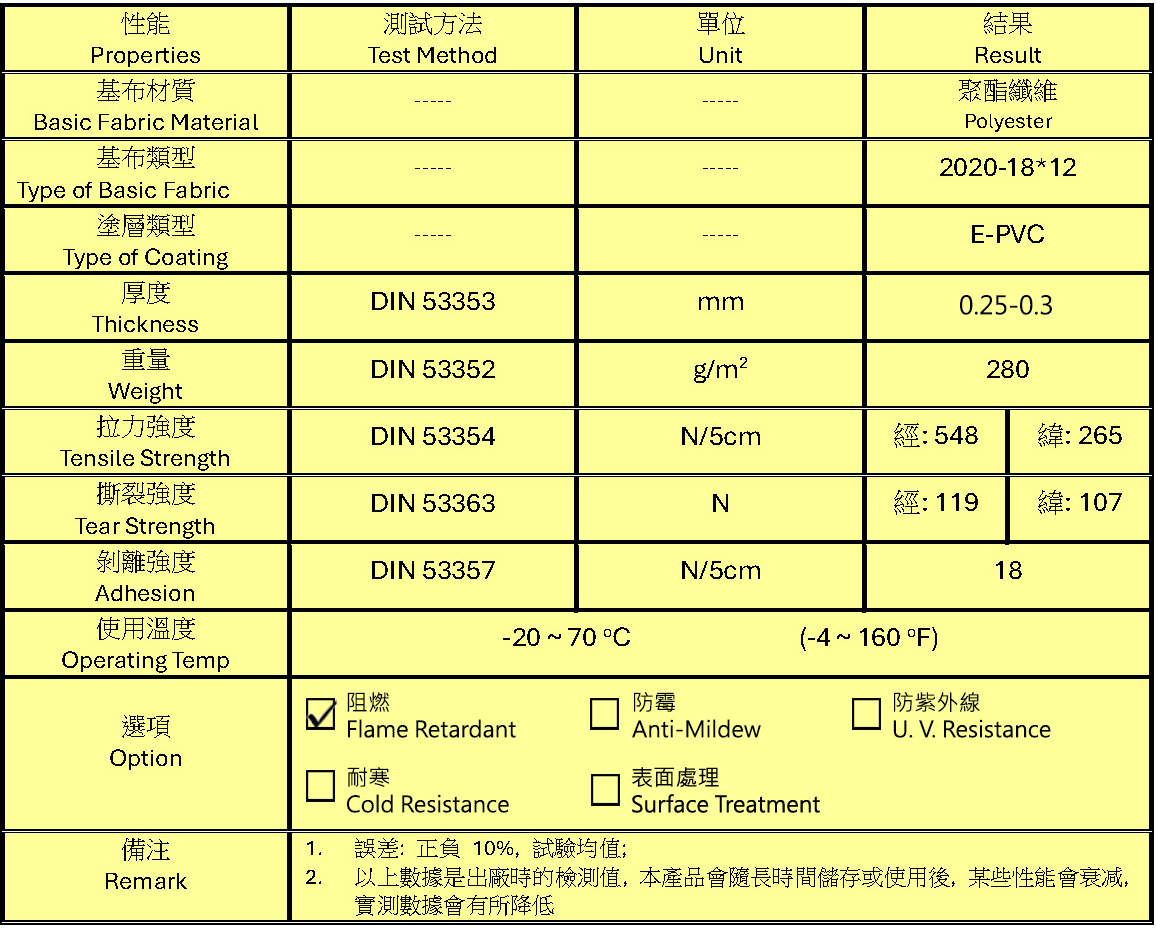

| Physical Properties: |
| Fabric Detail 網布規格 |
250D / 22 / 18 | |||||
| Item 項目名稱 |
Test Method 執行標準 |
Unit 單位 |
Value 數據 |
Unit 單位(英制) |
Value 數據 |
|
| Thickness 厚度 |
GB/T6672-2001 | mm | 0.3 |
mil | ||
| Width 寬度 |
GB/T6673-2001 | mm | in | 72 | ||
| Weight 重量 |
GB8948-88 | g/m2 | 356 |
oz/yd2 | 14.568 | |
| Tensile Strength 拉伸強度 |
MD | GB13022-91 | N/25mm | 297.0 |
lbs/in | 67.882 |
| TD | 441.0 | 100.795 | ||||
| Elongation at Break 斷裂伸長率 |
MD | GB13022-91 | % | 49.25 | % | 49.25 |
| TD | 72.25 | |||||
| Tear Strength 撕裂強度 |
MD | GB/T13763-92 | N | 62.1 | lbs | 13.916 |
| TD | 64.5 | 14.454 | ||||
| Adhesion of Coating Strength 剝離負荷 |
MD | GB8948-88 | N/30mm | lbs/2 in | ||
| TD | ||||||
| Remarks 備註 |
||||||
