Model No.CK2009
NOISE BARRIER MAT
Best Soundproof Noise Blanket for Sound Block and Sound Reduction
General Applications:   Construction, Marine (Field) covers, Storage covers and many other applications
Colors:   Yellow, Sky Blue, Green, Orange, Dark Green, White, Grey
Available Grades:   Fire-Retardant, Ultra-Violet, Anti-Mildew, Anti-Cold, Sound Insulated
Type of Products:   Roll Type
Flammability Test Method:   BS 476 PART 7:1997 Class2, BS5867-2 Type B

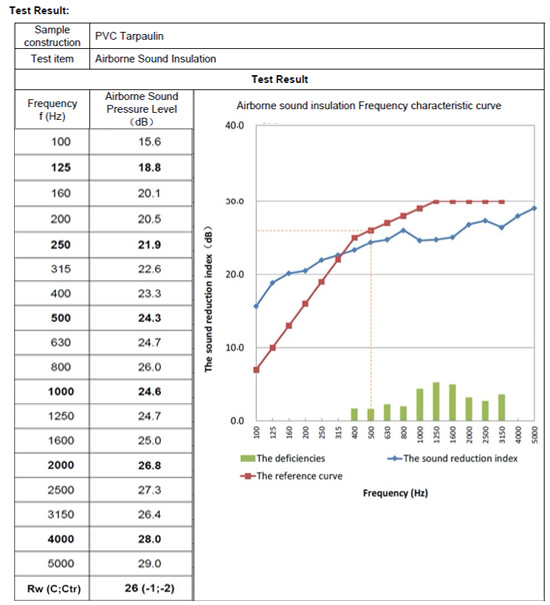

Sound Reduction Method:   ISO 10140-2-2010
Sizes:   1Mx2M or Tailor-made any sizes
Weight:   3 or 5 or 8 (kg/㎡)




Download Printable pdf version 下載列印版本資料

Physical Properties:
Fabric Detail
網布規格
1000D x 1000D x 20 x22
Item
項目名稱
Test Method
執行標準
Unit
單位
Value
數據
Thickness
厚度
DIN53353 mm
1.0
Total Weight
總重量
DIN53352 g/㎡
1132.2
Tensile Strength
拉伸強度
DIN53354 N/5cm 經 Warp
3040
緯 Weft 2549
Elongation at Break
斷裂伸長率
DIN53354 % 經 Warp 17.3
緯 Weft 23.3
Tear Strength
撕裂強度
DIN53363 N 經 Warp 448
緯 Weft 374
Adhesion of Coating Strength
剝離負荷
DIN53357 N/5cm 經 Warp 123
緯 Weft 108
Remarks
備註
